Syrup bottle filling machine
Liquid Syrup Filling Machine ( Speed 60-90 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This syrup filling machine is suitable for:

A variety of small doses of liquid filling & capping such as medical alcohol, oil, injection. Widely used in food, pharmaceutical, chemical industries and scientific research.



This machine is built in the absorption of foreign advanced technology, based on independently developed by our company.

This machine is suitable for a variety of small doses of liquid filling & capping such as oil, injection. Widely used in food, pharmaceutical, chemical industries and scientific research.

Full compliance with the GMP requirements.

Main Features Of MIC-L40 automatic e-liquid bottle filling capping and labeling machine
1. Microcomputer setting, high filling accuracy
2. The main engine is equipped with stepless frequency speed control.
3. Automatic production capacity quantitative control.
4. With all kinds of fault alerting, for low pressure, no filling, no inner cap etc.
5. The machine can stop automatically in case of no filling, no inner cap etc.


Powerrig Machine is one of the toppest syrup filling machine, automatic syrup filling machine, syrup bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

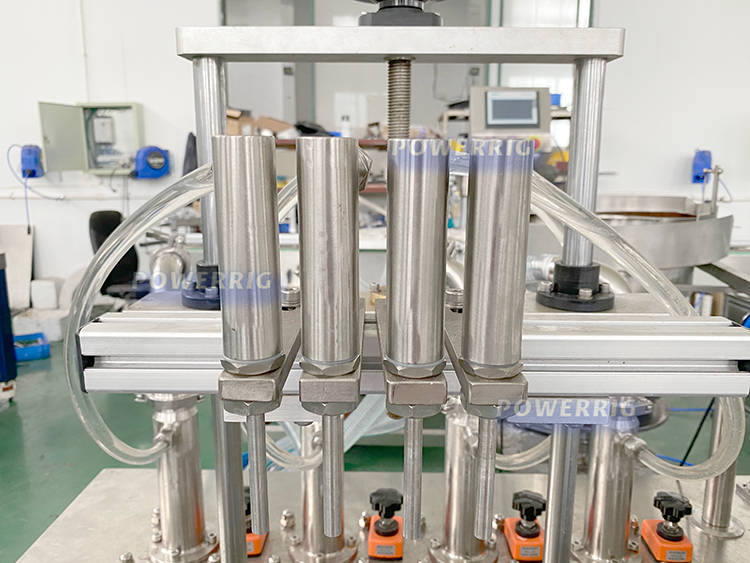

Filling head

The bottle through the conveyor belt was sent to the location of the filling head, automatic identification of sensors, control by internal program to send signals for filling station, Start precise quantitative filling, filling process without dripping, do not waste material, also can ensure the bottle clean and tidy.

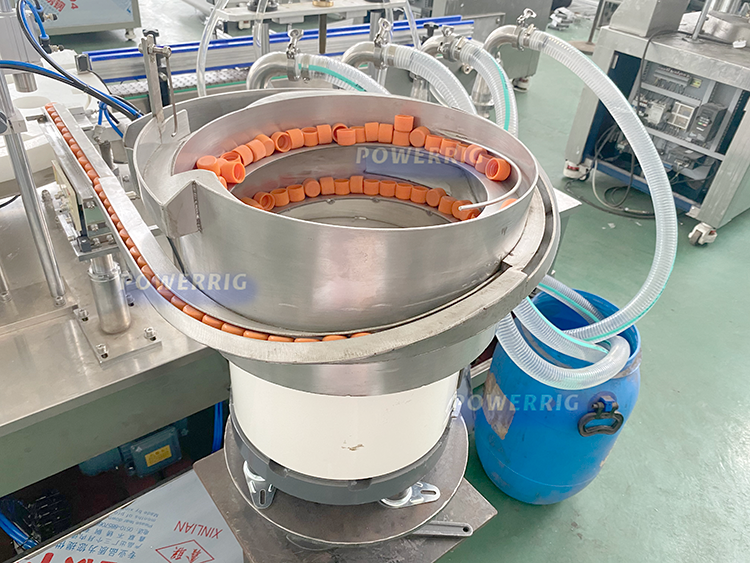

cover loading automatically

    Cover feeding cage with vibrating disk is connected to a pipe that carries the outside cover ,They automatically arranges the outside cover and deliver the outside cover.

     In this way, the small bottle is covered in a Coherent process, reducing the manual contact with the syringe process, and ensuring bottle hygiene,At the same time, labor costs are reduced.

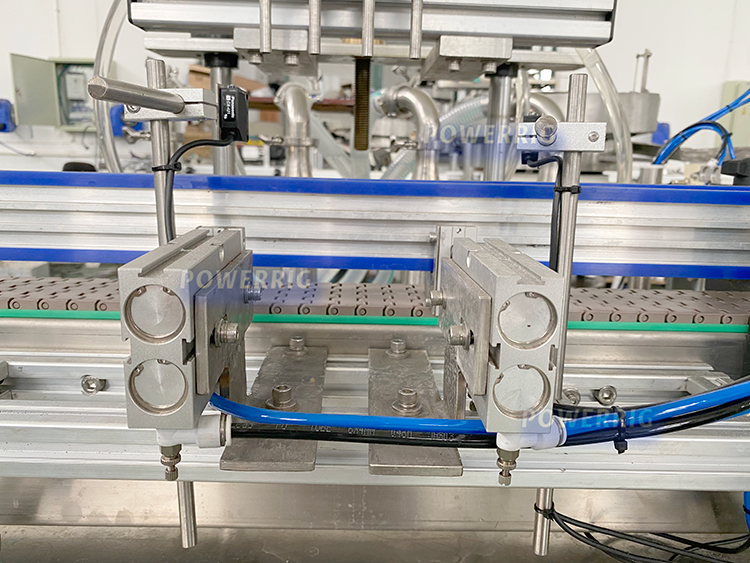

Bottle block air cylinder

When the bottle can reach a certain number, there is a special infrared sensor on the bottle track to receive the induction, and then automatically stuck behind the bottle, in front of the bottle after the bottle filling, and then let the behind the bottle to fill the vacancy, so as to achieve no bottle no filling















Automated vial filler,Vial filling and sealing machine,Vial filling machine process,vial stoppering machine.illing and sealing machine.

Thank you for the reading this article , you can also check for: → Application ←→ QC Adjustment ←

Filling volume

5-100ml

Loading error

≤ ±1%

Rotation (rolling) Cover pass rate

≥99%

Production capacity

30-50BPM



60-90BPM

Power supply

380V/50Hz

Power

2.0 kw

Weight

600 kg

Dimension

2000*1000*1500mm

Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency Transformer

Mitsubishi

Motor

JSCC made in Germany

Air Cylinder

Airtac

Solenoid Valve

Airtac

Speed Reducer

Made in Taiwan

Bearing

NSK

PLC

Mitsubishi

Touch Screen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step Motor

SNAYO made in Japan

Filling Machine
