Small bottle filling machine

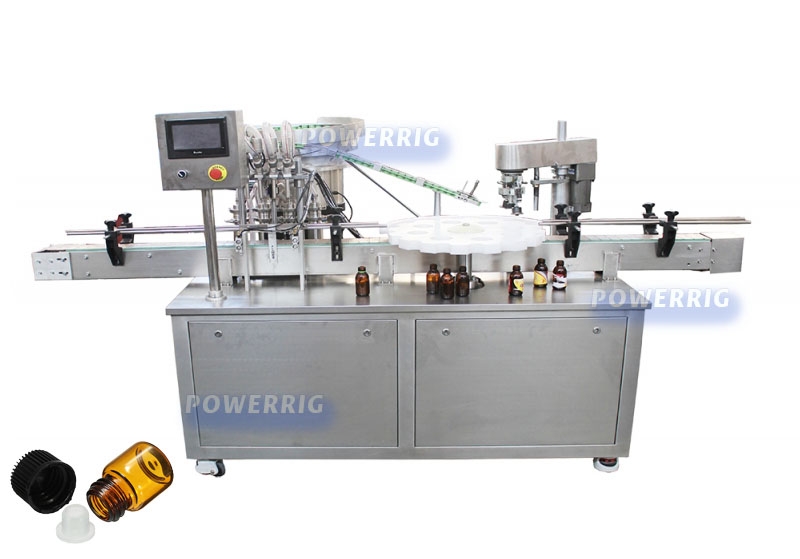

Syrup Packaging Machine ( Speed 20-40 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This liquid syrup filling machine is suitable for:

Syrup, oral liquid, E-liquid, Eye-drops and Ear-drops into various round and flat Glass bottles with the range from 10-50ml.


Main features of MIC stable automatic small glass bottle filler and capper machine
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand.
3) Running in a high automatization ,no pollution.
4) Self bottle loaded.
5) Stainless steel body, neat and beautiful.
6) No bottle no filling.


High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.


It is fours heads filling, piston pump filling type. High filling accuracy, without liquid leakage.

And the filling valve is easy to open. It is convenient to wash and clean.


Powerrig Machine is one of the toppest syrup filling machine, automatic syrup filling machine ,liquid syrup filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

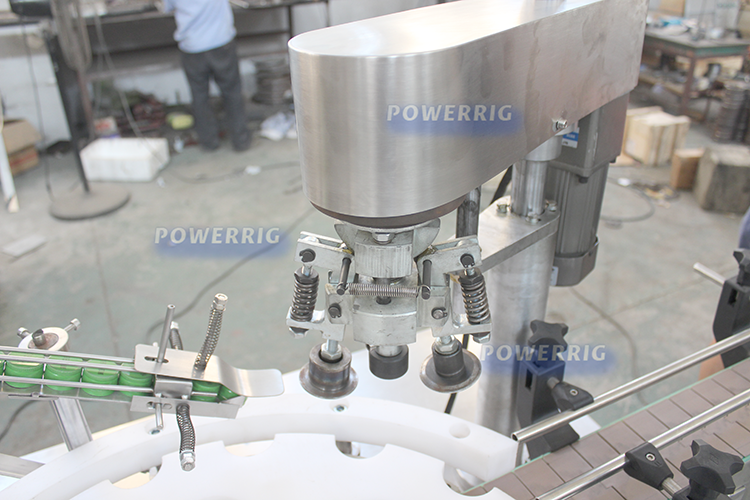

Screw capping head
His job is to tighten the lid on a bottle that has been filled , which is the last step on the main bench.
When the bottle reaches under the Screw capping head, the machine automatically recognizes and the Screw capping head moves downward to tighten the cap quickly.

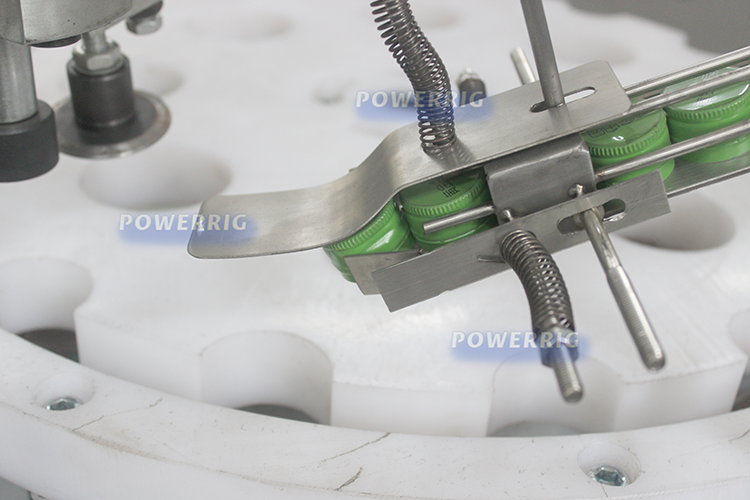

cover loading automatically

    Cover feeding cage with vibrating disk is connected to a pipe that carries the outside cover ,They automatically arranges the outside cover and deliver the outside cover.
     In this way, the small bottle is covered in a Coherent process, reducing the manual contact with the syringe process, and ensuring bottle hygiene,At the same time, labor costs are reduced.












Filling Volume

10-120ml

4 Filling Heads

Output

20-40 Bottles/min

According to the Size of Bottle

Bottle Type

Glass Bottle or Plastic Bottle

Round or Square

Cap Type

Plastic Bottle or Aluminum Cap

/

Filling Precision

≤±1%

/

Power Supply

380V/50Hz

Can be Customized

Capping Rate

≥99%

/

Stoppering Rate

≥99%

/

Air Supply

1.3 m3/h 0.4-0.8Mpa

/

Power

2.0Kw

/

Weight

650 kg

/

Dimension

2100*1200*1500mm

/

Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency Transformer

Mitsubishi

Motor

JSCC made in Germany

Air Cylinder

Airtac

Solenoid Valve

Airtac

Speed Reducer

Made in Taiwan

Bearing

NSK

PLC

Mitsubishi

Touch Screen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step Motor

SNAYO Made in Japan


Filling Machine
