Plastic cup filling machine
Sauce Cup Filling Machine ( Speed 30-35 cups per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
Automatic cup filling sealing machine can auto cup falling, cups detecting, auto filling, auto vacuum, film sealing cups, auto cover placing and capping, auto discharging the finish product. Base on different mold quantity, its capacity from 1800-2000cups per hour, suitable for the foods and beverage factory production needs.

Whole machine ismade by stainless steel 304 and anodizing aluminum, ensures it can run in bad environment which has damp, steam, oil, acidity and salt etc. its body can accept the water rinsing clean.

Using high quality imported electrical parts and pneumatic parts which ensures the stable running in long time, reduces the stop and maintenance time.

the macine mainly feature:
Driven system：Servo motor with gearbox for the cup molds stepping running, it can moves the filled cup very fast but avoid material splashing because the servo motor can start and stop with uniform velocity, and also high positioning accuracy.

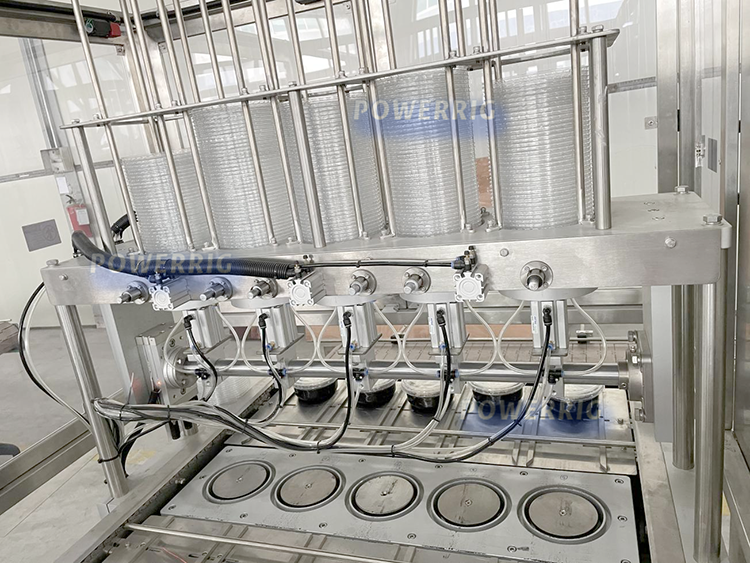

Empty cup loading function: it adopts spiral separating and pressing technology which can avoid the cup damaging and deforming, it has vacuum sucker which can guide the cup to onto the mold accuracy.

Empty cup detecting function: it adopts photoelectric sensor or optical fiber sensor to detect the mold have or haven’t empty cup, it can avoid the mistake filling and sealing if the mold without the cup, reduce the product waste and machine cleaning.

Quantitative piston filling function: piston filling and cup lifting function, no splash and leakage, the filling system also has CIP clean function.

Granules filling device: measuring cup filling is suitable for filling little granules on the hummus.

Vacuum function: the system is composed of vacuum pump, vacuum gas storage tank, vacuum valve, charging valve, vacuum meter, etc. The cup will be vacuumed to extend the shelf life of the product.

Film Sealing cutting function: The system consists of automatic film drawer, printing film location, waste film collection and thermostat sealing system, sealing system can runs fast and locates at the printed film accurately. Thermostat sealing cutting system uses Omron PID temperature controller and sensor for high-quality heat sealing.

Capping function: it is composed of lower locating mould, lid storage frame and lid releasing manipulator. The position of the cover is accurate, the success rate is high, to ensure that the cover is closely connected with the plastic cup.

Discharge system: it can output the sealed trays and sends it to the outside liner.

Automation control system: it is made up by PLC, Touch screen, servo system, sensor, magnetic valve, relays etc.

Pneumatic system: it is made up of valve, air filter, meter, pressing sensor, magnetic valve, air cylinders, silencer etc.

Dust guards: it is optional function, it is made up by PC plates and stainless steel, has safety switches which protect the operator.


Powerrig Machine is one of the toppest cup filling machine, cup filler, cup packing machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

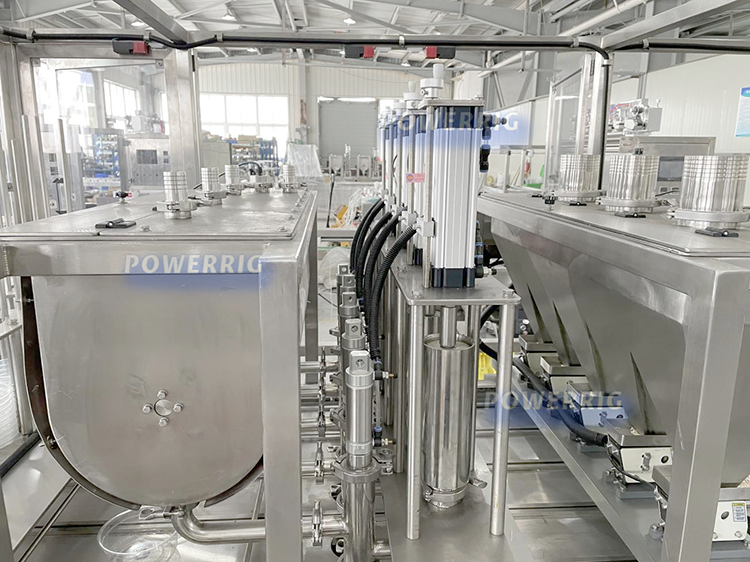

Quantitative piston filling

Piston filling and cup lifting function, no splash and leakage, the filling system also has CIP clean function.

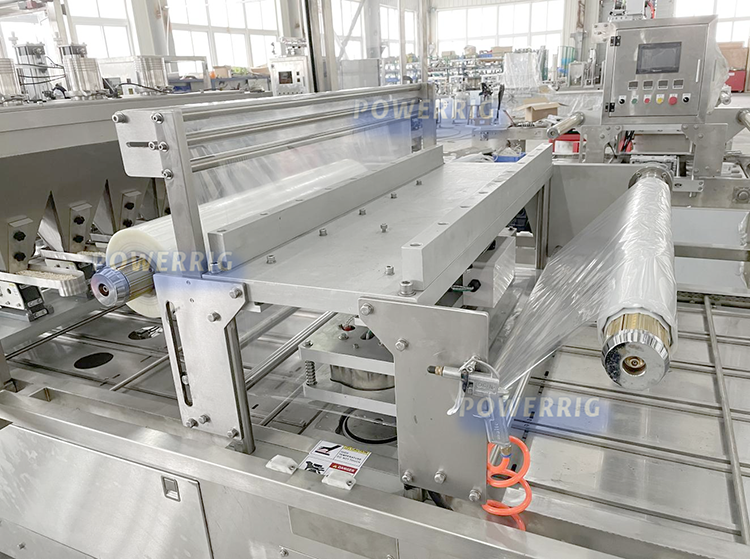

Film Sealing cutting
The system consists of automatic film drawer, printing film location, waste film collection and thermostat sealing system, sealing system can runs fast and locates at the printed film accurately. Thermostat sealing cutting system uses Omron PID temperature controller and sensor for high-quality heat sealing.








Capping function

It is composed of lower locating mould, lid storage frame and lid releasing manipulator. The position of the cover is accurate, the success rate is high, to ensure that the cover is closely connected with the plastic cup.














Type

Plastic cup filling sealing capping machine

Model

ATS-5 VG

Filling nozzles

5 working station

Capacity

30-35   Cup s/ minute

Filling volume

1 0 0 - 5 00   gram  (be adjustable)

Voltage

380 V /50HZ / three-phase four-wire (Customized)

Power

8.5 Kw

Working pressure

0. 6 Mpa- 0.8 Mpa

Dimension

450 0mm ×  140 0mm×  180 0mm

Weight

1600  kg

Touch screen

Siemens   (Germany)

PLC

Siemens   (Germany)

T emperature-controlled meter

Omron (Japan)

Relay

Omron (Japan)

Sensor

Omron (Japan)

Air cylinder

AirTac (China, Taiwan)

Solenoid valve

AirTac (China, Taiwan)

Pneumatic element

AirTac (China, Taiwan)

Stepping motor

Mitsubishi   (Japan)

Servo motor drive system

Mitsubishi   (Japan)

Switch

Schneider   (France)

Contactor

Schneider   (France)

Frequency changer

Schneider   (France)
