Lipstick Filling Machine
Lip Balm Tube Filling Machine ( Speed 1-120 tubes per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

1)This product is designed for liquid cosmetics, such as lipstick, pen type lipstick, eyebrow pencil, lip oil, lipstick... Etc.


2) Separate barrel mixing and temperature control design to meet the diversified demand of raw materials.


3) Using advanced automation technology (man-machine interface, PLC program control,), the whole machine needs set parameters (time, temperature control setting) are set by man-machine interface, simplifying the system operation program, the overall performance is more stable.


4) The main body is aluminum extrusion structure, the platform is aluminum and the plane is easy to clean.

5) The system operation program is simple, no time for education and training.

6) Each unit (barrel, pump, material pipe and nozzle) is controlled by intelligent temperature controller independently, making the device easier to use.

7) Automatic counting.


Powerrig Machine is one of the toppest lip balm tube filling machine, lip balm filling equipment, lip balm tube filler factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

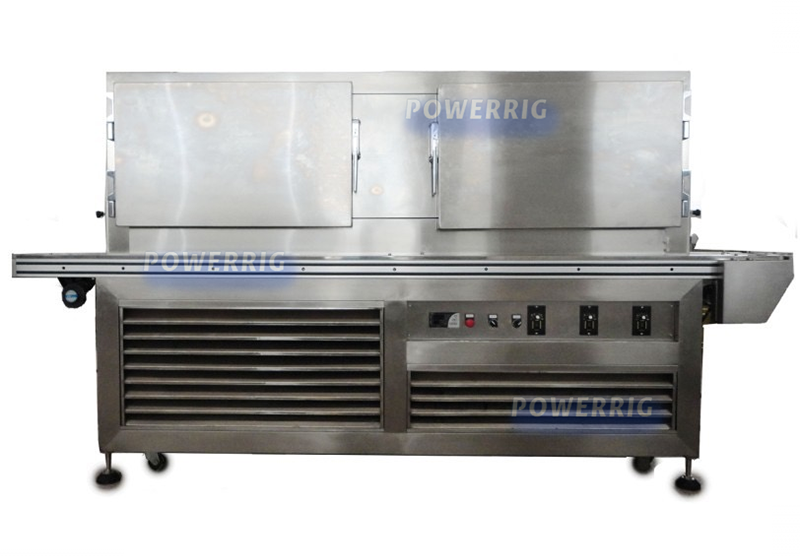

Automatic Cooling Tunnel
Model TC-5P is an automatic cooling machine designed for the production of hot filling/pouring
Design for two tunnel with 2-4station (option) and frost moving
Stainless steel 304 frame
Temp control by digital T.I.C
Conveyor speed and cooling temp controlled according to the type

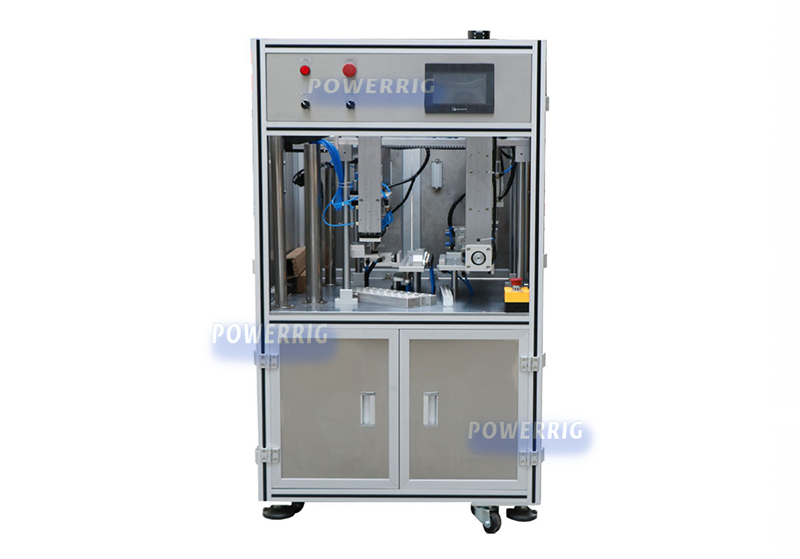

Lipstick Stripper Machine

  This product is designed for the lipstick demoulding device. After the artificial socket is inserted into the red tube, it can automatically dial and release the mold on the top of the machine.
    Using PLC interface is easy to operate. It can directly set up the screen, set the mold and set the mold time on the screen.
    Simple machine and control design and maintenance is convenient.
   Reduce the production process, improve work efficiency.
   The volume is light and no space.
   Pneumatic drive, maintenance and cleaning easy.









Power Supply

380(220)V/ 50Hz

Total Power

5.5KW

Dimension (LxWxH)

1100*1100*1990MM

Production Capacity

8s/mould

Workable Height

740MM(H)

Filling Range

1-15ml

Barrel capacity 1

20L

Barrel Capacity 2

20L

Temperature range

0-150℃

Stirring Speed

0-120 R/M

Net Weight

320KG

 Single nozzle head filling machine

Touch screen

Kinco

China

Switch

Schneider

Germany

Pneumatic component

SMC

Japanese

Temperature controller

Autonics

Korea

PLC

Mitsubishi

Japanese

Relay

Omron

Japanese

Conveyor and mixing motor

Zhongda

Taiwan

 Automatic cooling tunnel

Refrigeration systems

Danfoss

France

Switch

Schneider

Germany

Motor

Zhongda

Taiwan

Controller

KI&BNT

China

Meter

Danfoss

France

Pneumatic component

SMC

Japanese

Fan

KUB

China

Semi-automatic lipstick releasing machine

Pneumatic component

SMC

Japanese

Switch

Schneider

Germany

Relay

Omron

Japanese

Filling Machine
