Lipstick Filling Machine
Lip Balm Filling Equipment ( Speed 1000-2200 pcs per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
Application
1)The machine adopts heavy-aluminium material , with precision design and beautiful appearance .

2)Stainless steel (316L adopts) material barrel with two jacket (both polished) separate oil heating . The material barrel adopts mixing and temperature control .

3) Filling part adopt mechanical movement, advanced motor make the machine filling with high precision,
revolving angle reach 0.02 degree .

4)Fully-auto control system, simple human-computer interface make operation easier . As for heating aspect, adopt high-tech temperature control system which simultaneously control 20 units of temperature, avoid troublesomeness and complex of single control, this bring stable and exellent teating system .

Usage
This product is designed for lipstick/liquid cosmetics. It is suitable for lipstick, pen type lipstick, eyeliner pencil,etc.
1) Stirring speed and temperature of each tank are controlled independently.

2)Adopted advanced automatic control technology (interface, PLC, network), parameter (time, temperature,switch and speed of conveyor) is set by human machine interface. 3,Easy control and stable performance.

3) Framework made of hardened aluminum is easy to maintain.

It doesn’t need much time to train operator.
Individual temperature control by PLC for separate unit (tank, filling pump, filling house, filling nozzle andheating plate) to achieve precise temperature.
Automatic timer and counter.

Can perform with conveyor.


Powerrig Machine is one of the toppest lip balm tube filling machine, lip balm filling equipment, lip balm tube filler factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

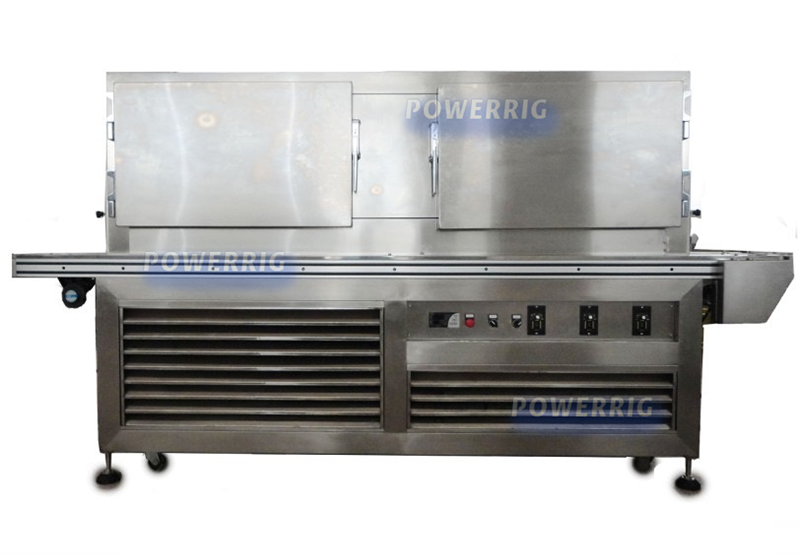

Automatic Cooling Tunnel
Automatic cooling machine designed for the production of hot filling/pouring
Specification
Design for two tunnel with 2-4station (option) and frost moving
Stainless steel 304 frame,Temp control by digital T.I.C

Conveyor speed and cooling temp controlled according to the type of product

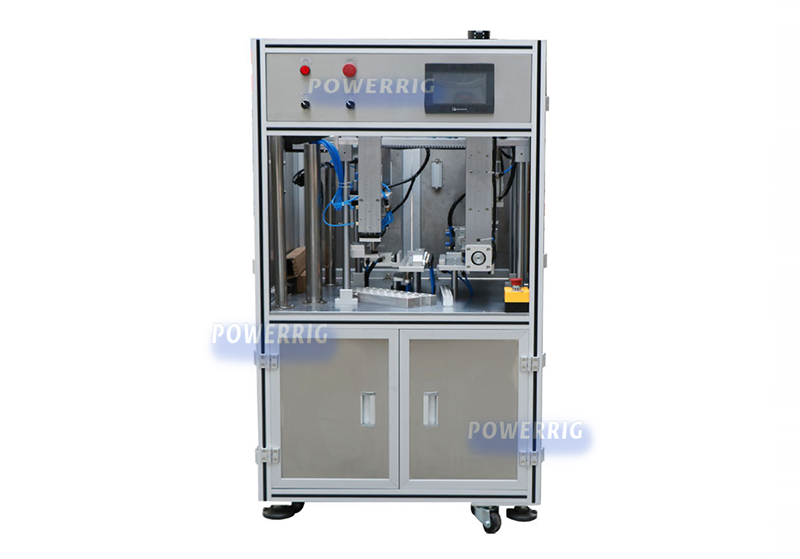

Lipstick Stripper Machine
   This product is designed for the lipstick demoulding device. After the artificial socket is inserted into the red tube, it can automatically dial and release the mold on the top of the machine.
    Using PLC interface is easy to operate. It can directly set up the screen, set the mold and set the mold time on the screen.
    Simple machine and control design and maintenance is convenient.
    Reduce the production process, improve work efficiency.
    The volume is light and no space.
    Pneumatic drive, maintenance and cleaning easy.









Output capacity

1000-2200pcs/hr

Filling Type

Gear pump

No. of nozzle

12pcs

Cavity

12pcs

Vessel volume

25L/set*2set

Display

PLC

No. of operator

1

Power consumption

5kw

Dimension

1.5×1.05×2.0m

Weight

600kg

Air input

4-6 kgf

Output capacity

1000-2200pcs/hr

Filling Type

Gear pump

No. of nozzle

12pcs

Cavity

12pcs

Vessel volume

25L/set*2set

Display

PLC

No. of operator

1

Power consumption

5kw

Dimension

1.5×1.05×2.0m

Weight

600kg

Air input

4-6 kgf
