Fully automatic rotary cup filling & sealing machine can auto loading the empty cups, empty cups detecting, auto quantitative filling product into cup, auto loading the aluminum foil seal lids, auto sealing cup, auto discharging the finish product. Base on different mold quantity, its capacity from 1000-3000 cups per hour, suitable for the foods and beverage factory production needs.

1.Made by stainless steel 304 and anodizing aluminum, ensures it can run in bad food factory environment which has damp, steam, oil, acidity, coffee and salt etc.

2.Using high quality imported electrical parts and pneumatic parts which ensures and stable running in long time, reduces the stop and maintenance time.

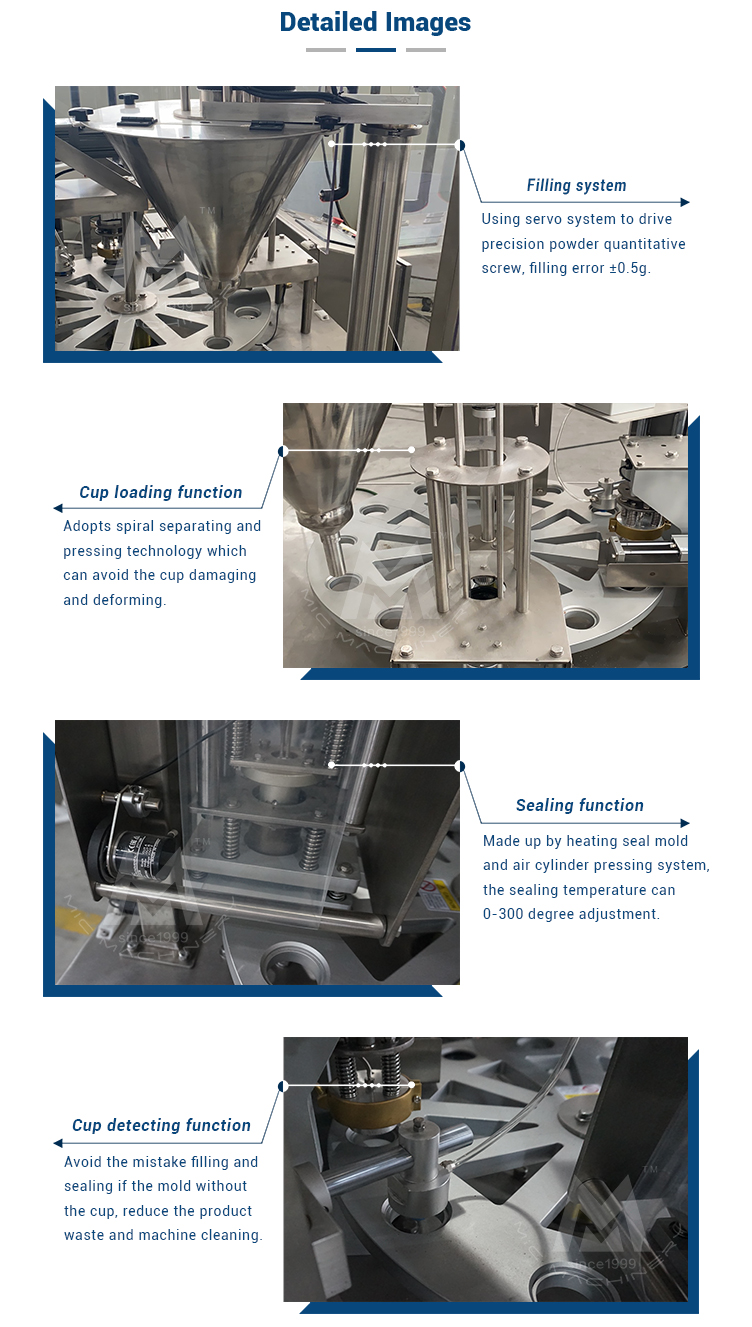

3.Using servo system to drive precision powder quantitative screw, high filling accuracy, reliable operation, easy to adjust.

4.Adopts spiral separating and pressing technology which can avoid the cup damaging and deforming.

5.Has vacuum sucker which can guide the cup to enter into mold accuracy.

Powerrig Machine is one of the toppest coffee filling machine, coffee packaging equipment factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

.



•



Model	POWERRIG-1A
Capacity	800-1200 cups/hour
Filling Volume	5g-10g
Filling Error	≤±0.3g-0.5g
Heating Temperature	0-300℃
Air Pressure	0.6-0.8Mpa
Dimension	1300*1000*2000mm
Power	1.5kw
Weight	600kg
Voltage	220-380V/50-60hz/Single-three phase
