Bag filling machine

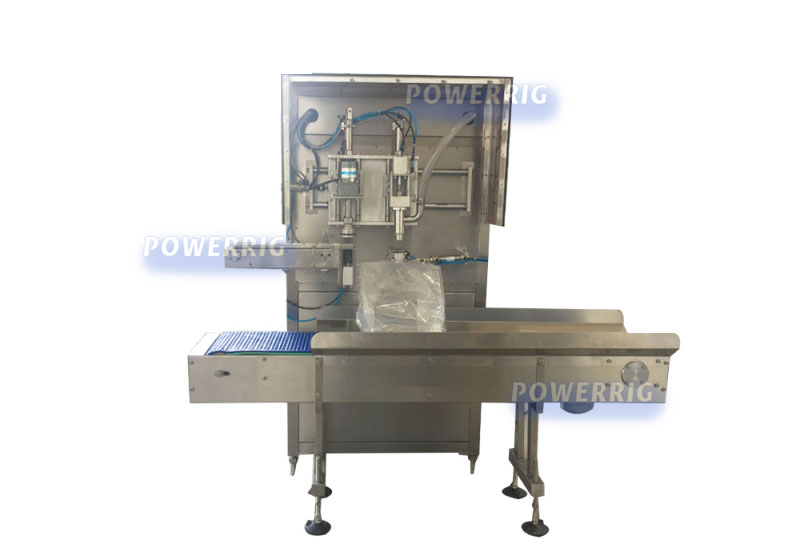

Semi-automatic single-head filling capper ( Speed 120 bags per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

The machine adopts 304 stainless steel rotor pump + servo motor for material absorption and transportation;It has stable operation and high filling efficiency.Manually fix the bag mouth in the box on the filling bayonet, and the filling head automatically dives to fill;After filling, manually place the cover on the cover feeding belt, and the cover feeding belt will bring the cover to the lower part of the rotary cap. The top cover cylinder will beat the cover to the rotary cap, and the rotary cap will automatically move the cover to the mouth of the bag.After the package is finished, the bag with the screw cover will be automatically punched out, and the bag will be transported with the conveyor belt to the next process.


Powerrig Machine is one of the toppest bag filling machine,pouch filling machine,liquid pouch filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








Applicable bag type

box in the bag

Filling and capping speed

about 120 bags / hour

Applicable bag diameter

customized according to customers' bags

Measurement error

≤±3‰

Filling capacity

100-5000ML and 1L-20L

Power source

AC220V, single phase, 50HZ

Total power

2.5KW

Dimensions

1400mm × 720mm × 1700mm (length × width × height)

Touch screen

Xinjie color screen

PLC programmable

Schneider, France

Solenoid valve

Taiwan Yadeke

Cylinder

Taiwan Yadeke

Gas source treatment

Taiwan Yadeke

Low-voltage electrical appliances

Schneider, France

304 stainless steel rotor pump

Zhejiang Ligao

Servo motor

Taiwan Dongyuan

Material

304 stainless steel is used in contact with the material
