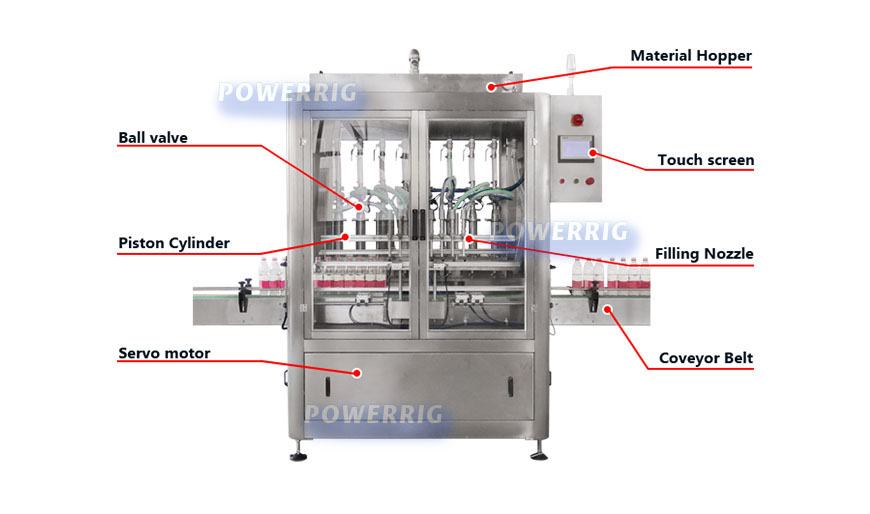

Liquid Soap Botttle Filling Machine

1 ） The machine adopts PLC control, according to the filling bottle, fixed discharging mouth, the rest all

operation can be finished on a touch screen. In addition to have common automatic servo piston filling

machine advantages, also the widened the range of filling material. Such as filling material contains

particles, long strips of solid content, also can be a very effective filling.

This machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food,

Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high

viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.



2） This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The machine material adopt USU304 and  filling nozzle material tank and touches liquid part material is USU316 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials . The machine is customized according to customer needs, different material viscosity can be set dive filling, vacuum filling, each filling head is independent can be controlled by touch screen filling alone.



3） This high viscosity viscous liquid volumetric filling sealing and capping machine piston filling machine ,widely used in Daily chemical industry, Cosmetic, food industry ,high viscosity materials, shampoo, hair condition cream, hand cream dish washing liquid and so on, the effect is obvious.  Filling method can customize according to customer's different material , if customer's material is low viscosity material , suggest use gravity flow filling machine,  if customer's material is high viscosity material , suggest use piston filling machine

If customer's material have many foam, also can customize vacuum filling and diving filling ,

If customer's haven't fluidity, easy to precipitation , can customize mixer and heating hopper above filling machine.

Difference:

Use servo motor double rod driven system make the filling volume accuracy reach 99% and machine running very stable. Filling volume adjustable no need change any part .Easy operate.

Powerrig Machine is one of the toppest soap filling machine, liquid soap filling machine, liquid soap bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

We will recommend the right bottle filling capping machine based on your bottle material.

•

•




•





Thank you for the reading this article.

Weight	700KG	Dimension	2000*1300*2200mm
Power	customized	Power	1.5Kw
Filling Volume	100-1000ml	Filling nozzle	8 nozzles
Filling Error	≤ 3%	Capacity	≤ 3000BPH
Suitable   Filling Material	Oil,shampoo,detergent,sauce, honey, etc	Suitable Barrel Length	180-330mm
Suitable Barrel Width	120-250mm	Suitable Barrel Height	80-450mm

•
•
•
