Edible Oil Filling Machine

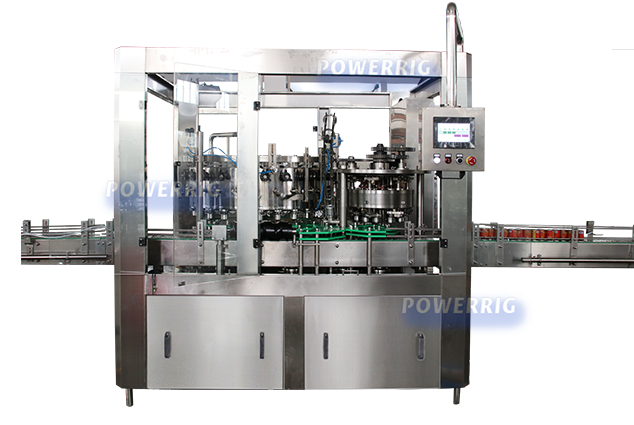

Edible Oil Can Filling Machine ( Speed 4000-8000 CPH )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

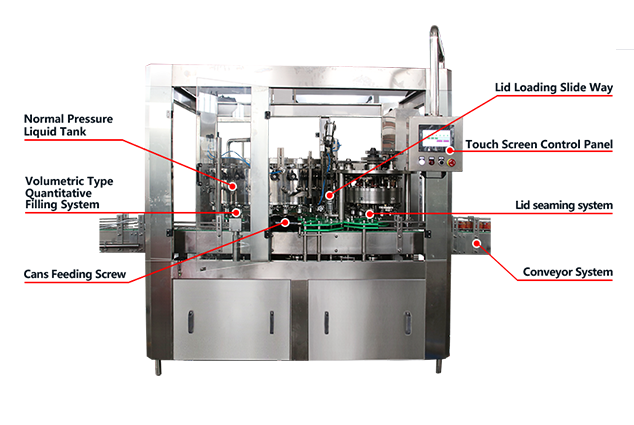

Edible Oil Can Filling Machine adopts volumetric type quantitative filling system which is applicable for vegetable oil , cooking oil , olive oil, edible oil, sunflower oil, peanut oil etc liquid like oil products.


Features:

1.Volumetric type quantitative filling can ensure high precision filling, do not waste materials. To make the filling process is stable and high efficient.

2.The structural design of each part fully considers the health requirements, the filling cylinder,filling valve and parts in contact with the material are made of stainless steel 304, with good corrosion resistance.

3.This machine is equipped with a set of adjustment device, so that customers can fill 100ml~1000ml bottles without changing the measuring cup, only adjust the measuring cup capacity. No bottle no filling function.

4.The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. Cylinder backblowing anti-drip device.

5.It is mainly used for oil can filling and seaming. Its structure is advanced, stable, reliable, safe operation, convenient maintenance, the use of frequency conversion speed control, high production efficiency, is the ideal equipment for big and medium sized food and oil factory.


Powerrig Machine is one of the toppest cooking oil filling machine, cooking oil packing machine, cooking oil packaging machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

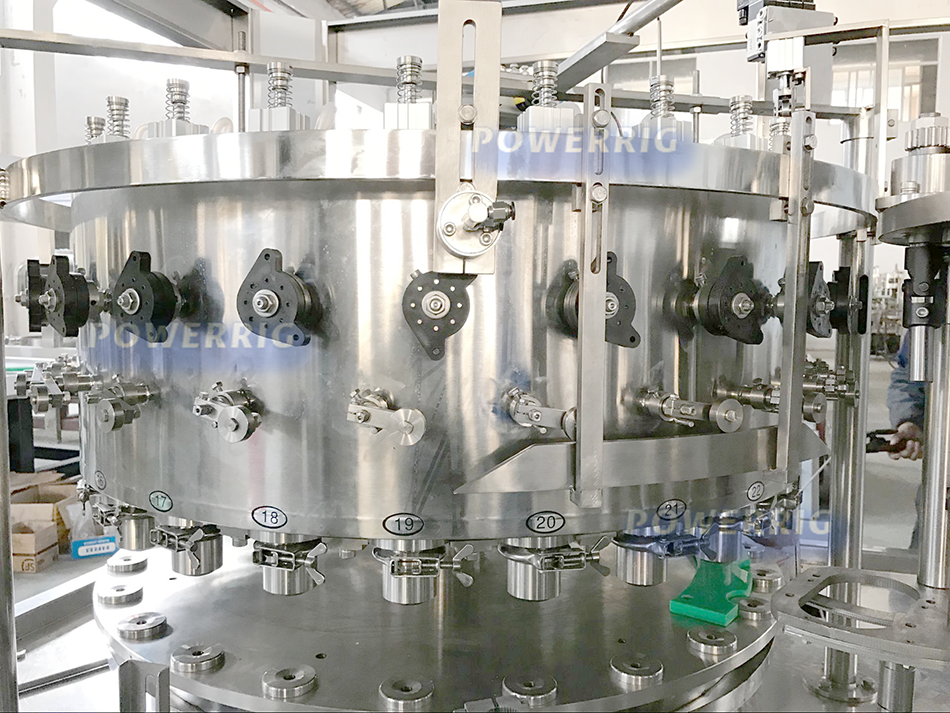

Filling part working principle

This machine adopts non-contact quantitative filling. Open the measuring cup control valve, feed oil to the measuring cup according to the adjusted flow, and the cans is conveyed into the filling machine by the conveyor belt, screw and dial wheel. At the same time, the time control is used to close the measuring cup control valve after accurate measurement. After the filling process is completed, the cylinder acts to blow the last remaining oil from the valve port into the cans, so as to achieve the effect of no drip leakage. Then send to the seaming machine to complete the seaming.

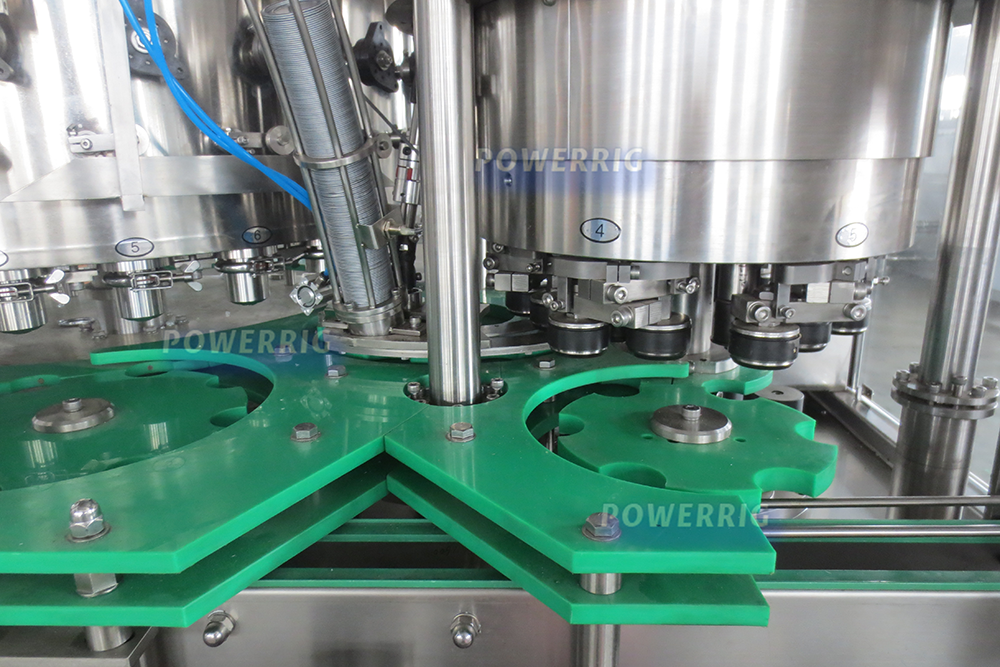

Aluminum lid seaming system

The motor transmits the power to the main shaft through the transmission device, so that the turntable rotates. Because the central gear does not rotate, the rotary cap rotates because of the rotation of the gear of the rotary cap shaft. When the machine sealing, the cover through the automatic cover falling device, cover falling guide rail, there is a can into the cover plate, no can no cover, when the rotation of the cap side moving down, rotation (pressure) cap under the action of the CAM to complete the cover. Then by the drawing wheel into the can delivery.

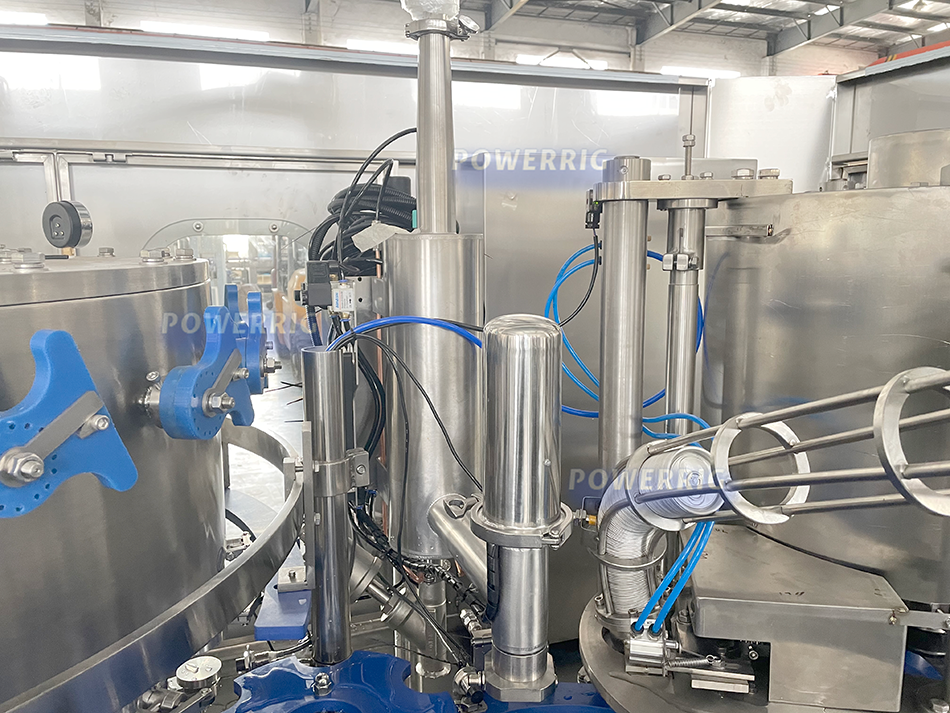

Liquid nitrogen doser

In order to extend the shelf life and freshness of the oil, we will suggest our customer to add this liquid nitrogen doser to work with filling machine.















Power

4 Kw

Filling heads

24piece

Sealing heads

6 piece

Filling volume range

0.1-1L

Production capacity

4000-80 00CPH  based on  330ml

Filling temperature

Room temperature

Can diameter range

Ф 40 - 90 MM

Can  height

92 -1 68 MM

Air pressure

0.6-0.8Mpa

Air consumption

0.8-1.0m³/min

Dimension

2 6 00×1400×2500mmm

Weight

30 00Kg

Name

Brand

Touch screen

 Siemens (Germany)

B utton s

Schneider  (France)

AC  Contactor

Schneider  (France)

PLC

Mitsubishi  (Japan) / Siemens (Germany)

F requency changer

Schneider  (France)

Breaker

Schneider  (France)

Air cylinder

AirTAC  (China) / FESTO (Optional)

Solenoid valve

AirTAC  (China) / FESTO (Optional)

Relay

Omron  (Japan) /  Schneider  (France)

photoelectric sensor

Autonics  (Korea) /  Omron  (Optional)

Proximity switch

Autonics  /  Omron  (Optional)
