Edible Oil Filling Machine

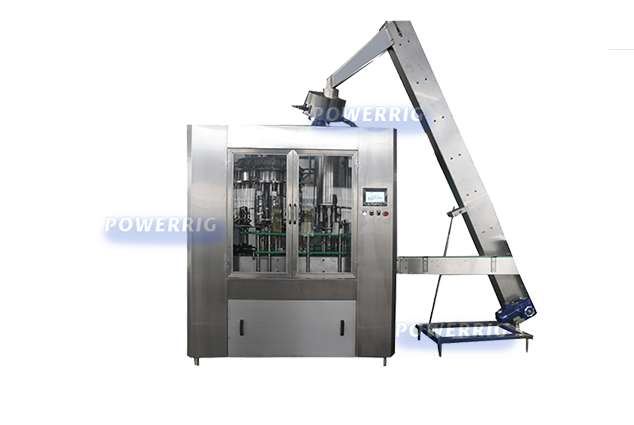

Rotary Type Edible Oil Bottle Filling Machine ( Speed 3000-6000BPH )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

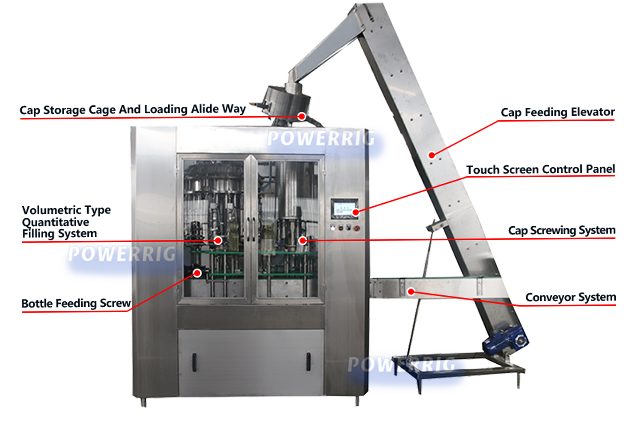

Rotary Type Edible Oil PET Bottle Filling Machine adopts volumetric type quantitative filling system which is applicable for vegetable oil , cooking oil , olive oil, edible oil, sunflower oil, peanut oil etc liquid like oil products.


Features :

1.Volumetric type quantitative filling can ensure high precision filling, do not waste materials. To make the filling process is stable and high efficient.

2.The structural design of each part fully considers the health requirements, the filling cylinder,filling valve and parts in contact with the material are made of stainless steel 304, with good corrosion resistance.

3.This machine is equipped with a set of adjustment device, so that customers can fill 500ml~2000ml bottles without changing the measuring cup, only adjust the measuring cup capacity. No bottle no filling function.

4.The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. Cylinder backblowing anti-drip device.

5.It is mainly used for oil bottle filling and capping. Its structure is advanced, stable, reliable, safe operation, convenient maintenance, the use of frequency conversion speed control, high production efficiency, is the ideal equipment for big and medium sized food and oil factory.


Powerrig Machine is one of the toppest edible oil filling machine, edible oil packing machine, edible oil bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

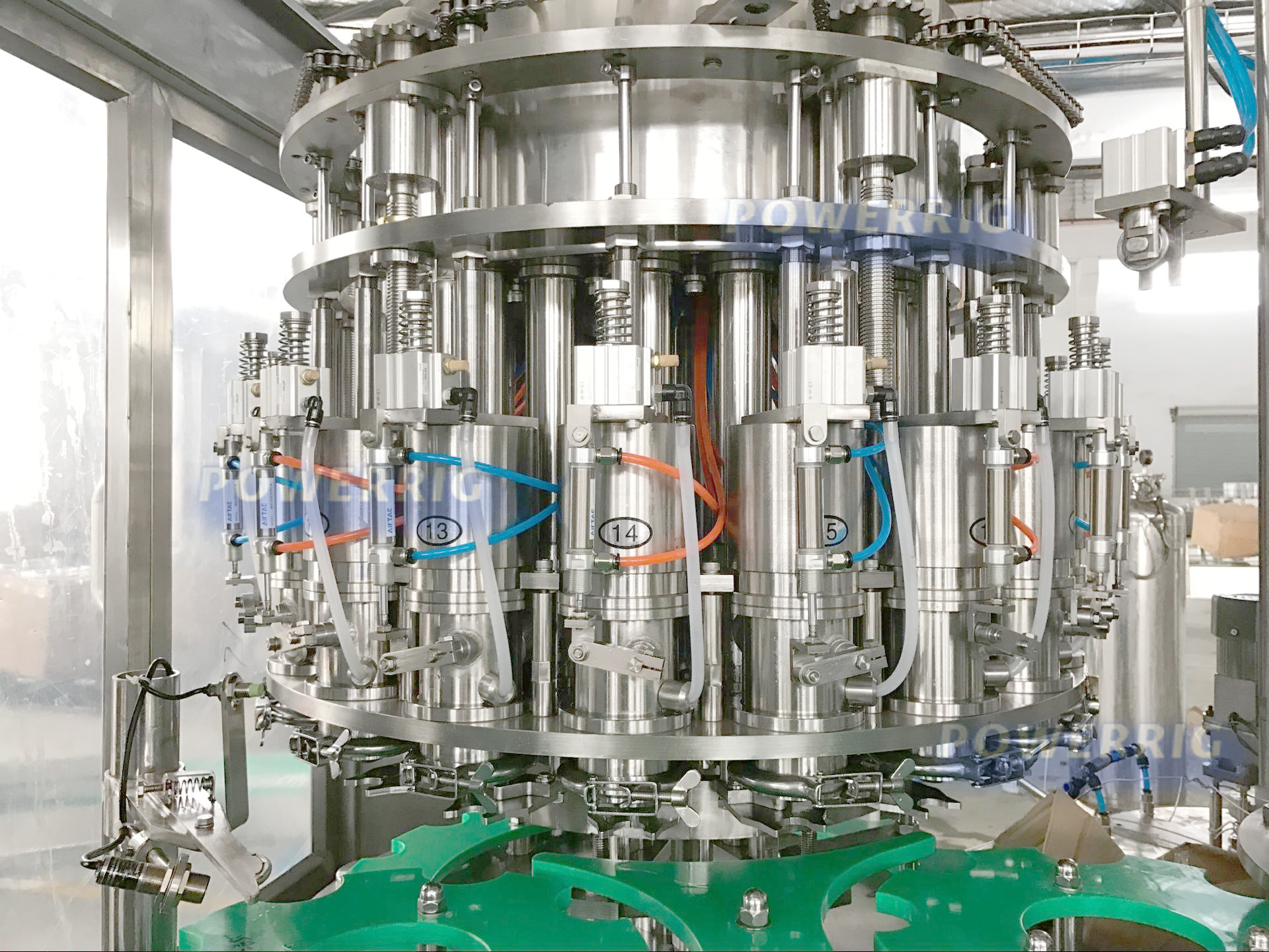

Filling part working principle

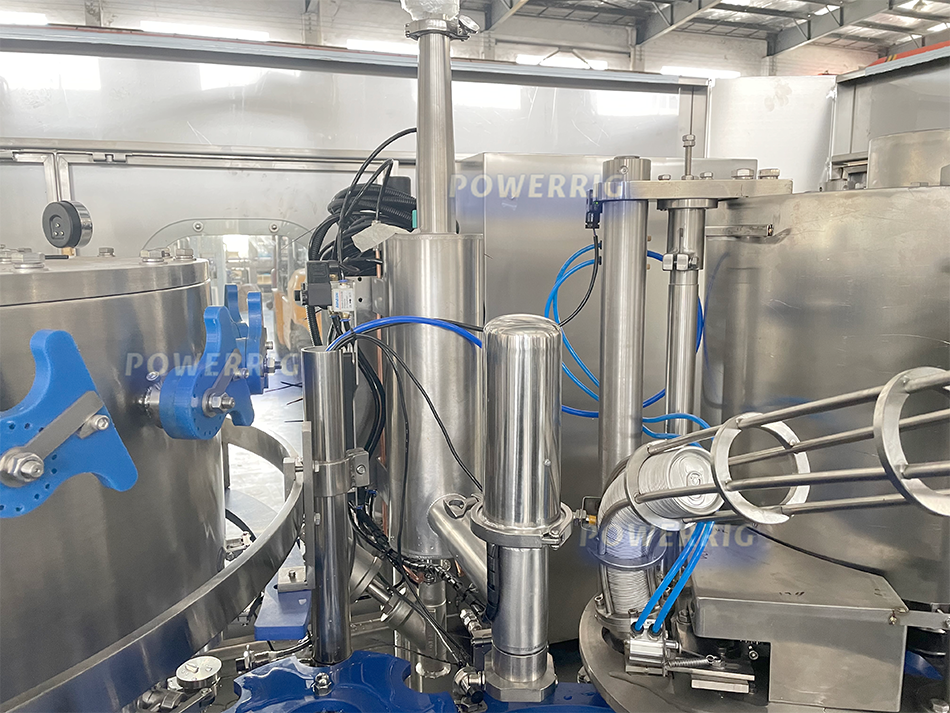

Filling part working principle: this machine adopts non-contact quantitative filling. Open the measuring cup control valve, feed oil to the measuring cup according to the adjusted flow, and the bottle is conveyed into the filling machine by the conveyor belt, screw and dial wheel. At the same time, the time control is used to close the measuring cup control valve after accurate measurement. After the filling process is completed, the cylinder acts to blow the last remaining oil from the valve port into the bottles, so as to achieve the effect of no drip leakage. Then send to the capping machine to complete the screwing.

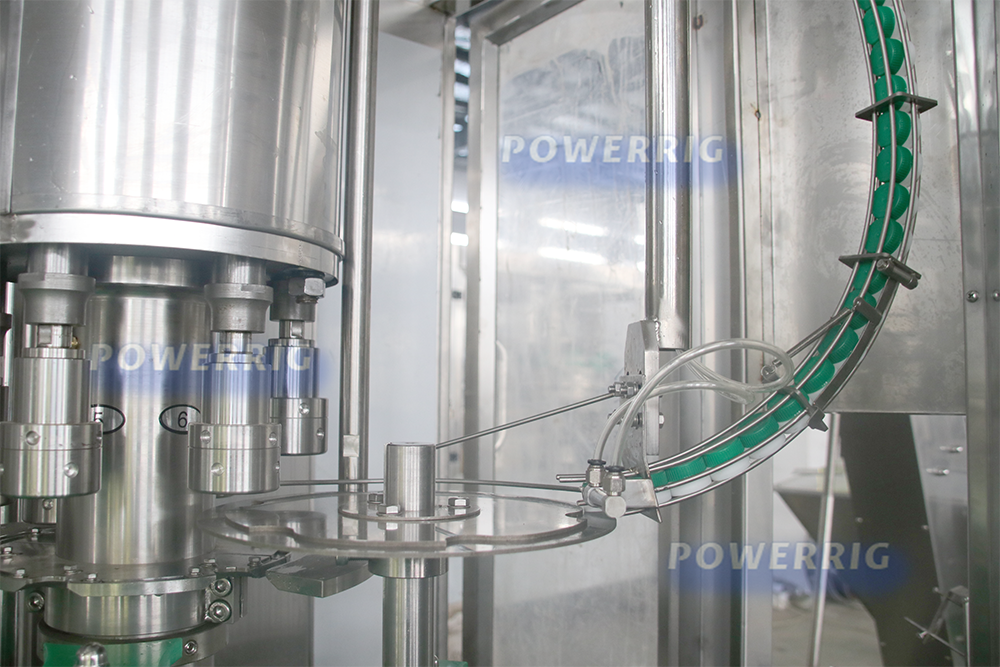

Plastic cap screwing system:The motor transmits the power to the main shaft through the transmission device, so that the turntable rotates. Because the central gear does not rotate, the rotary cap rotates because of the rotation of the gear of the rotary cap shaft. When the machine sealing, the cover through the automatic cover falling device, cover falling guide rail, there is a bottle into the cover plate, no bottle then no cover, when the rotation of the cap side moving down, rotation (pressure) cap under the action of the CAM to complete cover. Then by the drawing wheel into bottle delivery.






Liquid nitrogen doser: In order to extend the shelf life and freshness of the oil, we will suggest our customer to add this liquid nitrogen doser to work with filling machine.














Power

3 Kw

Filling heads

18piece

Sealing heads

6 piece

Filling volume range

0.5-2L

Production capacity

3000-60 00CPH based on 50 0ml

Filling temperature

Room temperature

Bottle diameter range

Ф 60 - 120 MM

Bottle  height

180 - 380 MM

Air pressure

0.6-0.8Mpa

Air consumption

0.8-1.0m ³ /min

Dimension

2 4 00×1400×2500mmm

Weight

25 00Kg

Name

Brand

Touch screen

 Siemens (Germany)

B utton s

Schneider  (France)

AC Contactor

Schneider  (France)

PLC

Mitsubishi  (Japan) / Siemens (Germany)

F requency changer

Schneider  (France)

Breaker

Schneider  (France)

Air cylinder

AirTAC  (China) / FESTO (Optional)

Solenoid valve

AirTAC  (China) / FESTO (Optional)

Relay

Omron  (Japan) / Schneider  (France)

photoelectric sensor

Autonics  (Korea) / Omron  (Optional)

Proximity switch

Autonics  / Omron  (Optional)
