Cream Filling Machine

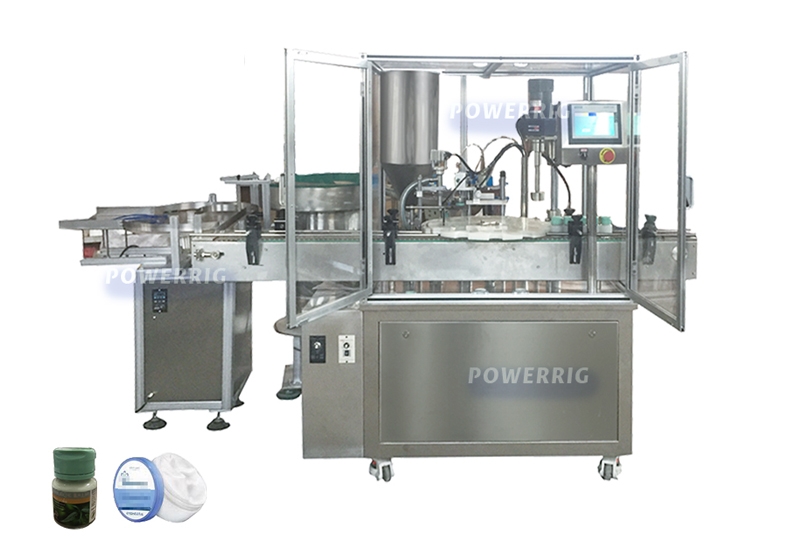

Cosmetic Cream Filling Machine ( Speed 30-40 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This filling capping machine is suitable for:

Cosmetics, light industry (daily chemical industry), pharmaceutical, food and other industries, for enterprise products selected plastic bottles, glass bottles for packaging containers, the device can cream, ointment, cream, gel or viscous fluid.


The equipment is divided into a turntable into the bottle, automatic lift filling, automatic pre-spin cover, servo capping, a few bottles, such as the operation of the bottle into the bottle, filling the bottle, filling the bottle, and then the bottle capping operation.


1.Bottle inlet: by the artificial bottle to be filled into the hopper hopper, with the operation of the equipment in order to enhance the bottle.


2.Bottle detection: the photoelectric sensor detects whether there is an empty bottle on the main turntable, and sends the detection signal into the control computer to control the filling of the bottle, without bottle filling.


3. Filling function: If the front has detected a bottle, no bottle is not filling, PLC control filling mouth into the bottle for filling.

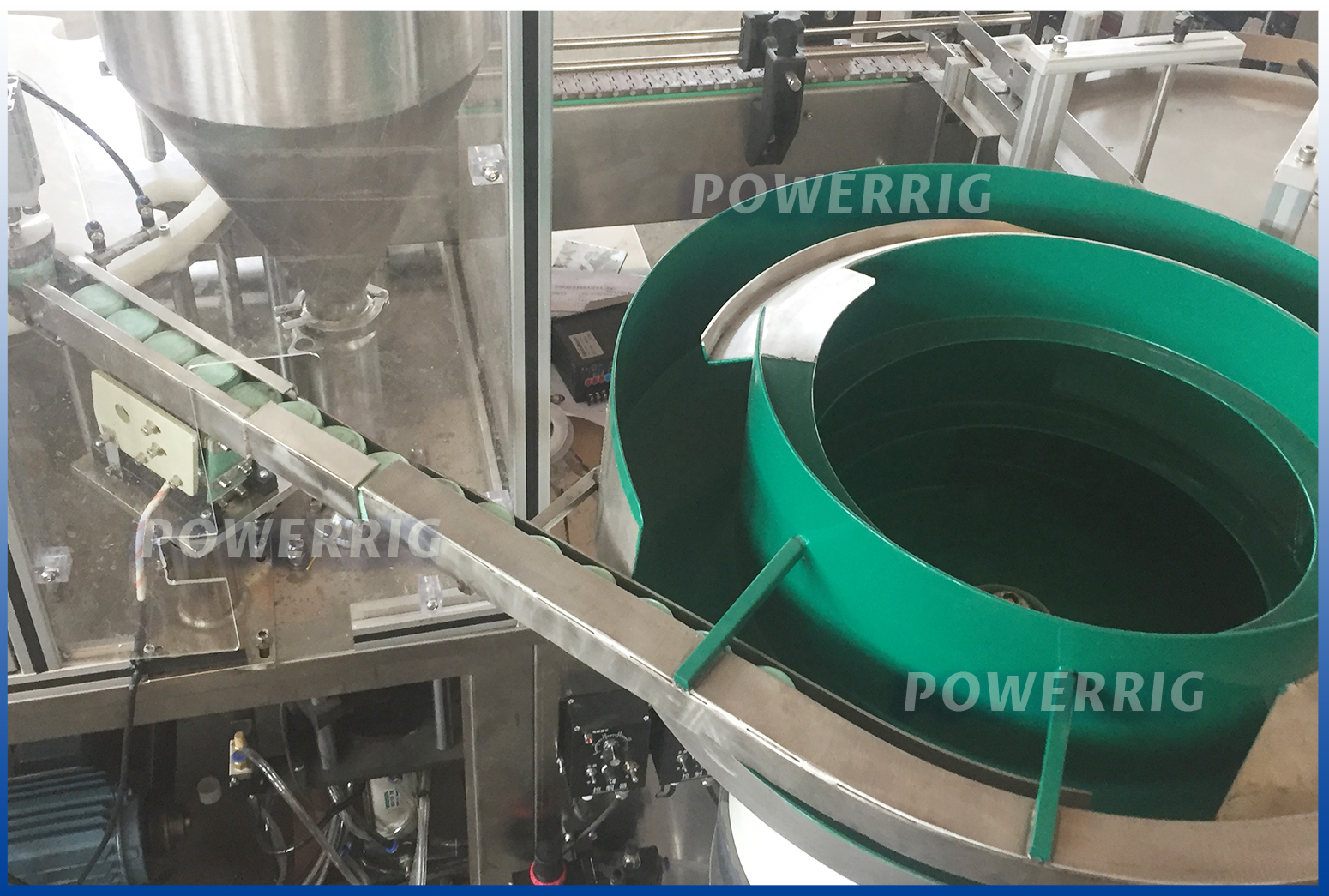

4.Load cover device: automatic load cover, high efficiency and more stable.


5. Capping: detection of a cover, this capping head will dive down and fix the bottle position to cap, very stable and with low noise.


6.Bottle outlet: at the last, capped bottles come out at the conveyor belt, and  you can enter the next process.


This machine is suitable for plastic bottle and lid filling capping of the cream, oral liquid bottles or small infusion bottles. The pressure can be easily adjusted, complete shape of the lid, electromagnetic vibration cap sorting, reliable cap feeding. It has simple structure and strong adaptability.


1. PLC control system and adopts foreign technology, and widely used for auto capping for plastic and glass bottles.


2. This machine use screw type capping, high precision.


3. This machine can work alone, also it can work with production line.


4. It has function of no bottle no capping.


5. This machine meets GMP requirement completely.


Powerrig Machine is one of the toppest cream filling machine, cosmetic cream filling machine, small cosmetic cream filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.










Thank you for the reading this article,

you can also check video for:

→ Application ←

→ QC Adjustment ←

Suitable F illing V olume

20-100ml

Production S peed

30-40 Bottles/min

Filling A ccuracy

≤±1%

Voltage

220V/50Hz Single Phase

Spain R o l l ing C over R a te

≥99%

Automatic L oading B rush R ate

≥99%

Air S ource

2 m ³ /h 0.4-0.8Mpa

Power

2kw

Machine W eight

500kg

Size

1530*2990*1500mm

Parts Brand

PLC Programmable Logic Controller

Delta Taiwan

PLC Module

Delta Taiwan

Touch Screen

Taiwan Taian

Main Motor

Taiwan Leeming

Conveyance Motor

Xiamen Lapping

AC Contactor

Schneider

Intermediate Relay

Schneider

Power Indicator

Schneider

Photoelectric Sensors

Sick

The Electromagnetic Valve

Explosion-proof Solenoid Valves

Switching Power Supply

Ming Wei

Inverter

Delta Taiwan

Pneumatic Components

AirTAC

Barometer

AirTAC

Regulator Filter

AirTAC

Filling Machine
