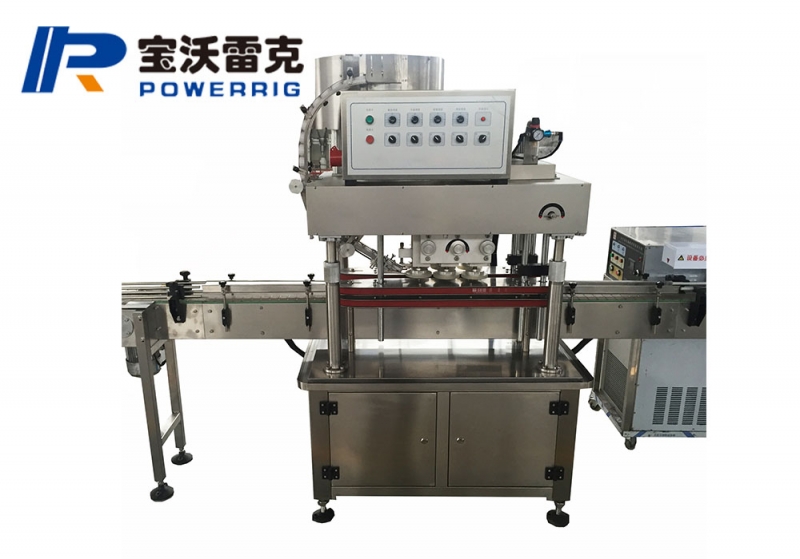

Using electrical and pneumatic control machine running, high Stability. A positioning device, capping standard, Easy to operate. Reach GMP.
1.Can lock and screw different diameter cap, can lock cap diameter range is widely.
2. Can lock and screw different shape and specification cap.
3. Solve the nozzle, pump head, pump spray, hand Button gun and anti-theft Capping difficult problem.
4. Capping speed adjustable, can be adjusted according to different cap tightness.
|
Screw Capping Head |
6 Heads |
|
Application Bottle |
Various sizes of round bottles, square bottles (barrels), flat bottle (barrels) and shaped bottles (barrels) |
|
Application Cap Diameter |
Φ20--Φ80mm |
|
Production Speed |
5000bottles/hour |
|
Voltage |
380V 3Phase four-wire |
|
Power |
4.0KW |
|
Work Pressure |
0.5Mpa-0.7Mpa |
|
Size |
2100mm × 900mm× 1564mm |
|
Weight |
500 kg |
|
PLC |
Schneider France |
|
Electromagnetic Valve |
Taiwan AIRTAC |
|
Air Cylinder |
Japan SMC |
|
Gas Source |
Taiwan AIRTAC |
|
Photovoltaic Systems |
Japan OPTEX |
|
Inverter |
Schneider France |
|
Machine Material |
SUS 304 |
