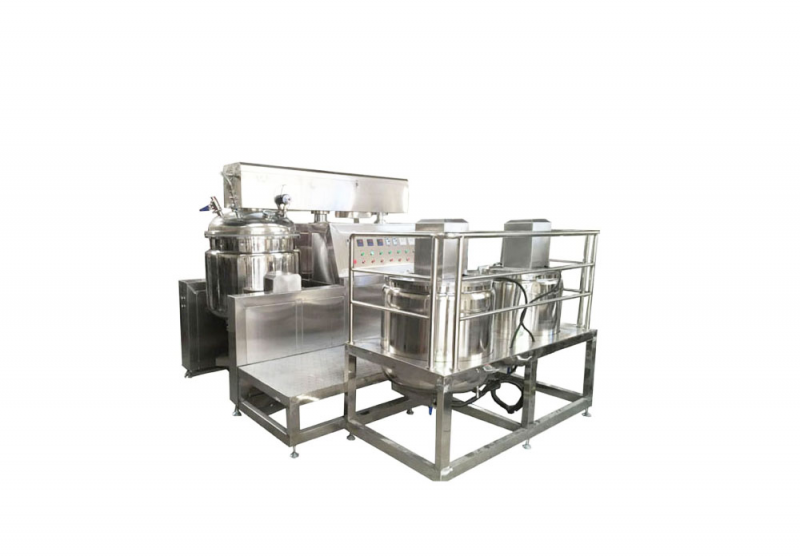

Vacuum emulsifying machine consists of vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system(oil tank and water tank optional). It is the most suitable equipment to produce hand sanitizer, disinfectant, mayonnaise and other paste or cream .

Body Material:
Inner wall: stainless steel 316
Jacket and outer layer: stainless steel 304
Both inner and outer are polished and handled by special light treatment.

Pot Capacity:
Primary Pot working volume: 500L

Powerrig Machine is one of the toppest vacuum mix homegenizer, homogenizer mixer, vacuum homogenizer factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

Control System

The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together,clear at a glance.

Pot lid feeding system

T his device can be connected to the tube using vacuum system, the material into the emulsifying pot, inner wall and outer are 304 high quality stainless steel, inside and outside fine casting, surface special light processing.

Oil And Water Tank

Used for pre-heating and pre-stirring materials, and then transported to the main pot for secondary stirring homogenization. The electric heating power of the sandwich layer is 2KW, and the outer layer is equipped with asbestos insulation device, which not only ensures that the heat energy is reduced and the scalding of employees is avoided. Two cases quota fixed stirring dispersions 0.55KW, so that oil and water heating more quickly and evenly.



•



Weight	800Kg	Dimension	1700x650x1700-2700mm
Power	3Kw	Motor Speed	2900R/Min
Particle Size	0.2-0.6um	Uncapping	Electric Lift
Heating	Electric Heating	Discharge	Tilt Pot Discharge & Bottom Valve Discharge
Working Pressure	-0.09Mpa	Stirring	Fixed Paddle Stirring and PE Blade Scraping

Item	Brand
Motor	Siemens
Reducer	Chinese Brand
AC Contactor	Schneider
Pump	Bosch
Button	Schneider
If need touch screen	Siemens
