Operating Principle:

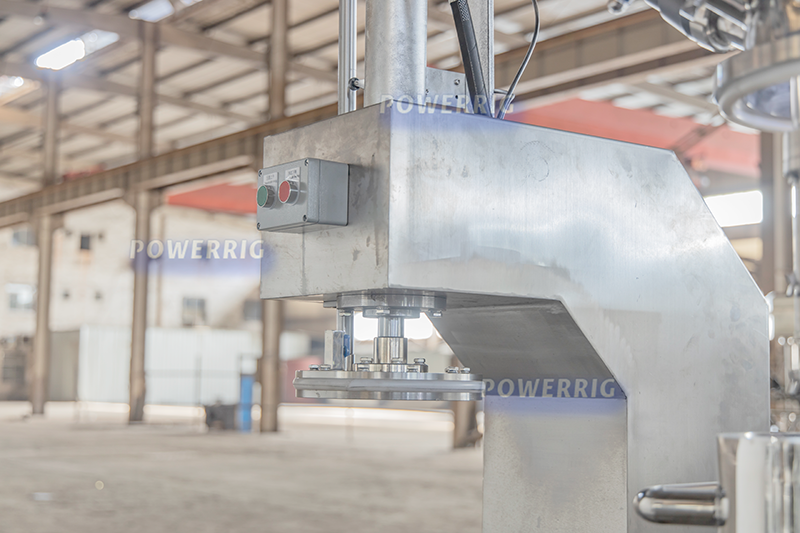

When the planetary frame rotates, it drives the three stirring in the box, and the dispersion axis rotates around the barrel axis at the same time, so that the material is subject to strong shear and kneading effect, so as to achieve the purpose of full dispersion and mixing; There is a wall scraper on the planetary rack rotating with the planetary rack, close to the barrel wall continuous scraping, so that the barrel wall without retained material, improve the mixing effect. The length of mixing time is controlled by the user according to the different properties of the material and can be adjusted by the control panel. Sealing cap and planetary stirrer by single column hydraulic lifting, smooth operation, fast, light.

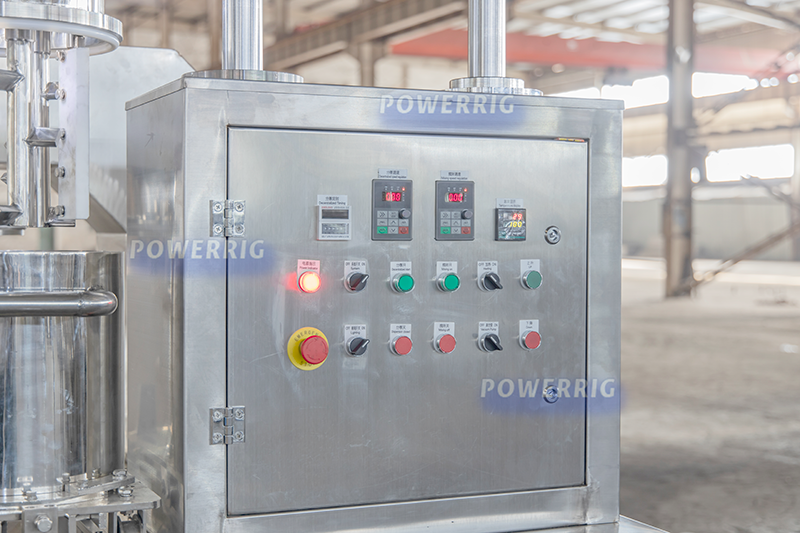

The device can work under vacuum, can continuously discharge water and other volatiles, therefore, can be used as a degassing kettle. The barrel can be heated or cooled by oil or water circulation as required; Steam heating can also be used. The heating temperature is displayed by the temperature controller on the control panel.

It can be widely used in chemical, food, light industry, pharmaceutical, building materials and other industries.

Powerrig Machine is one of the toppest double planetary mixer, vacuum planetary mixer, planetary vacuum mixer factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•
•
•



•



Supporting Power	380V 50HZ
Material Barrel Design Volume	8L
Material Barrel Working Volume	5L
Stirring Motor Power	2.2KW
Stirring Speed	0-65rmp adjustable
Scraper Speed	0-50rmp adjustable
Vacuum Degree	-0.09Mpa
Up And Down Distance	400mm
Up And Down Power	1.5KW

Frequency Changer	Easydrive (Shenzhen)
Motor	Huatiao (Nanjing)
Reduction Gears	Hangzhou (Zhejiang)
Vacuum Pump	Bolcom (Shanghai)
Hydraulic Station	Guangde (Wuxi)
Stainless Steel	Zhang Jiagang
Main Electrical Components	Chint (Zhejiang)
